New Smart Intelligent 3D Busbar Processing Machine

$20000

≥1
Set/Sets

Payment Type:

L/C,T/T

Incoterm:

FOB,CFR,CIF,EXW

Min. Order:

1 Set/Sets

Transportation:

Ocean,Land

Contact Now

 Chat Now

Product Description

Product Attributes
Supply Ability & Additional Information
Packaging & Delivery
Our service
Packing details

< >

Overview

Product Attributes

Model No.: SMART 603CNC

Brand: BEIENE

status: New

Video factory inspection: Provided

Mechanical test report: Provided

Marketing type: New Product 2020

Core component warranty period: 1 Year

Core components: Plc, Engine, Bearing, Gearbox, Motor, Pump

place of origin: China

shell material: Aluminum, Copper

Whether CNC machine tool: Cnc

warranty period: 1 Year

Core selling point: High Safety Level

Where to provide local services (in which countries are there overseas service outlets): None

Out-of-warranty service: Video Technical Support, Online Support, Field Maintenance And Repair Service

Applicable industry: Manufacturing Plant

Showroom location (in which countries are there sample rooms overseas): None

Motor Number: 3

Working Units: 3

Processing Material: Copper/Aluminum

Punch Thickness: 15mm

Supply Ability & Additional Information

Packaging: sea worthy packing

Productivity: 200set/month

Transportation: Ocean,Land

Place of Origin: Shandong, China

Supply Ability: 200set/month

Certificate: CE

Payment Type: L/C,T/T

Incoterm: FOB,CFR,CIF,EXW

Packaging & Delivery

Selling Units:: Set/Sets

Package Type:: sea worthy packing

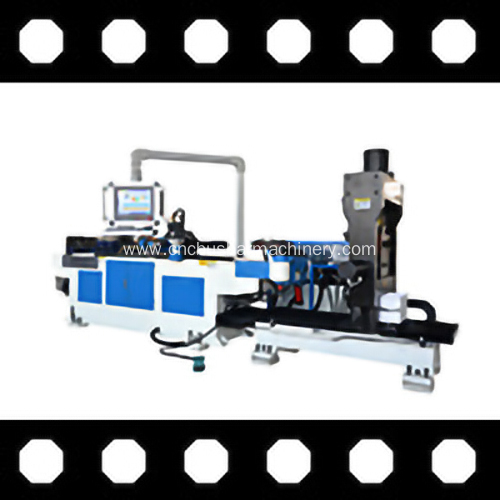

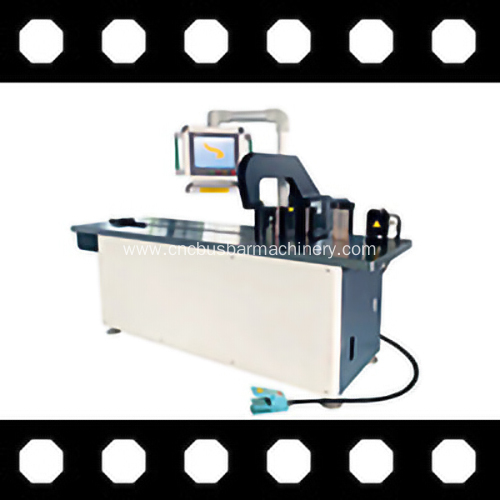

Picture Example:

Product decription:

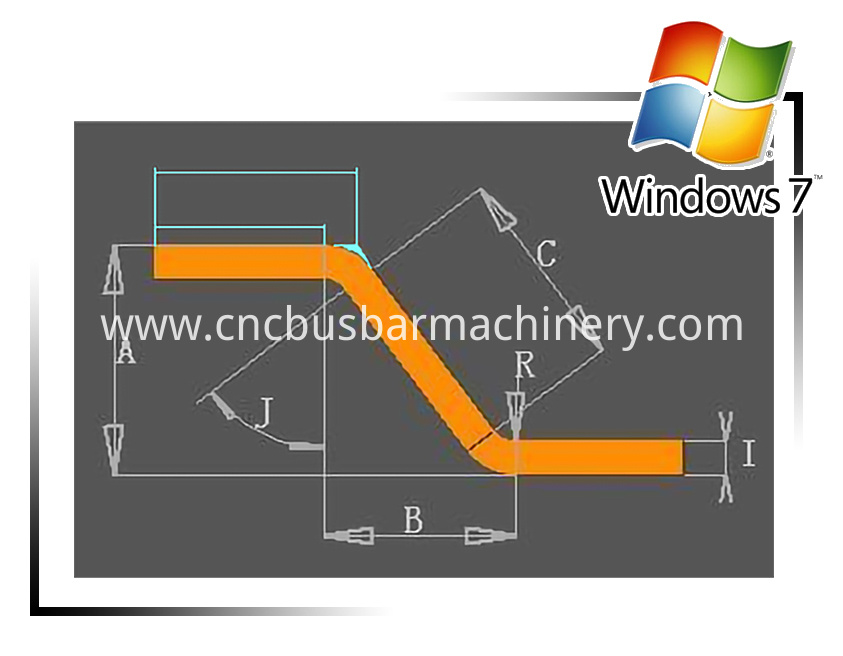

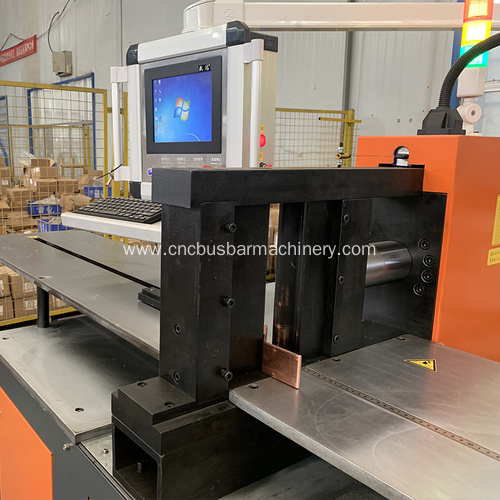

CNC Busbar Bending Machine is the computer-controlled equipment dedicated for busbar bending, performing various bending operations through the coordination of X-axis and Yaxis movements, assisted with manual feeding. The selection of different dies can complete the plane bending, side bending and other processes of busbar. The machine can be used in combination with GJ3D software, and is able to accurately calculate the spread length of the bend. As to the frequently bent workpiece, it can automatically find the bending order to achieve programming automation, simulate the bending order to place busbar and avoid errors in determining the bending positions

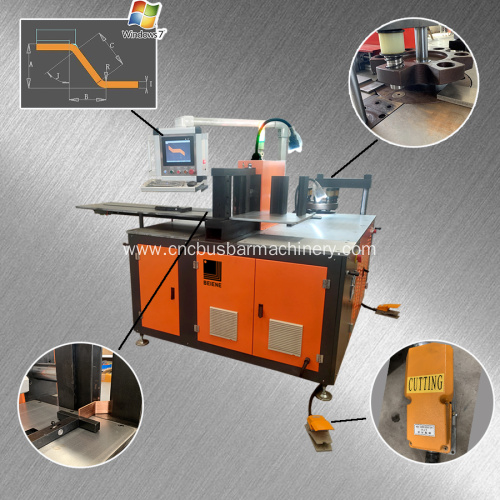

Smart Intelligent Busbar Machine Detail006

Product parameters:

Item	Unit	Parameter
Nominal Force	KN	600
Bender Accuracy	Degree	±0.2
Max Bending Stroke	mm	250
Automatic Stroke	mm	1000
Max Motion Speed of Side Striker (X Axis)	m/min	15
Bending Head (Y Axis)	m/min	Fast: 5; Low: 1.25
Min Inner Width of U-shape Bend	mm	40 (Note:Please consult us for smaller dimensions)
Max Bending Angle	degree	90
Level Bending (W*H)	mm	200 × 16 (Customerized 260x20mm)

Total Power	kw	7.2
Main Machine Dimension: L*W	MM	1500x1200x1200
TOTAL Weight	kg	2000kg

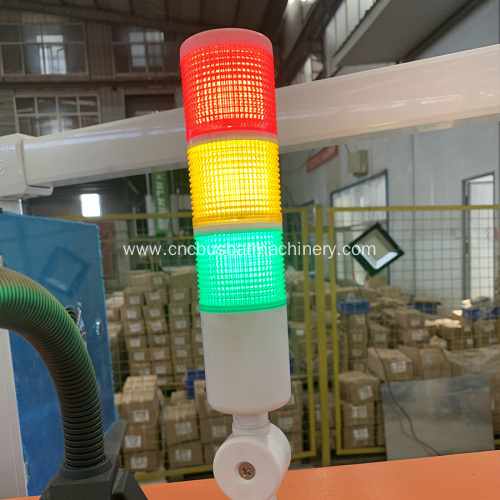

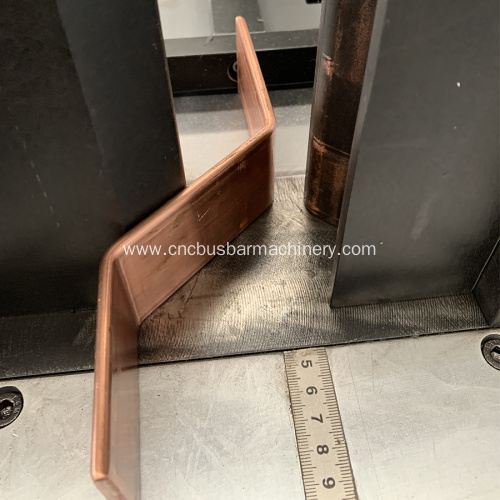

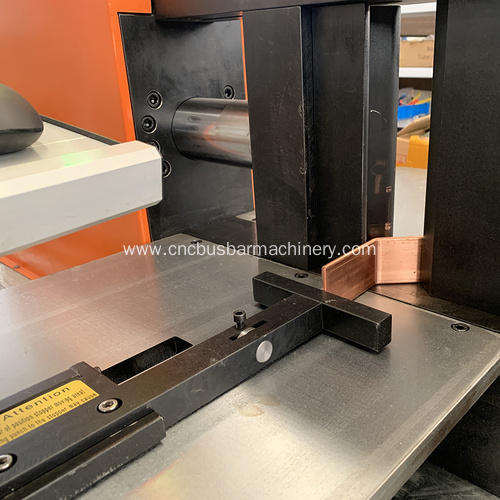

Detailed photo:

Packing and shipping:

Product Categories : Intelligent Busbar Machine

Our service

--- Inquiry will be replied within 2 hours.
--- All the way tracking service offered from placing order to delivery.
--- We can provide professional guide installation.
--- One year warranty and all round after sale service.
--- Customized design and flow chart are available for our clients.
--- Independent R&D team and strict & scientific management system.
