Automatic Punching And Shearing Machine With Hot Sale

$1000 - 30000 /Set/Sets

Payment Type:

L/C,T/T

Incoterm:

FOB,CFR,CIF,EXW

Min. Order:

1 Set/Sets

Transportation:

Ocean

Contact Now

 Chat Now

Product Description

Product Attributes
Supply Ability & Additional Information
Packaging & Delivery

< >

Overview

Product Attributes

Model No.: EMAC-BP

Brand: Euro-Asia

Whether CNC machine tool: Cnc

status: New

Machine type: Hydraulic Press

Nominal force (kN): 1250

power: Hydraulic

place of origin: China

Core selling point: High-Accuracy

warranty period: 1 Year

Applicable industry: Manufacturing Plant, Construction Works, Energy & Mining, Advertising Company

Out-of-warranty service: Video Technical Support, Field Maintenance And Repair Service, Spare Parts, Online Support

Where to provide local services (in which countries are there overseas service outlets): India, Philippines

Showroom location (in which countries are there sample rooms overseas): None

Marketing type: Hot Product 2019

Mechanical test report: Provided

Video factory inspection: Provided

Core component warranty period: 1 Year

Core components: Gearbox, Gear, Motor, Other, Plc, Bearing

Type: High-Speed Punching Machine

Punch Shape: Semi-Open Punch

Slider Movement: Double Action

Slider Drive Mechanism: Screw Press

Controlling Mode: CNC

Automatic Grade: Automatic

Power Source: Hydraulic Pressure

Precision: High Precision

Certification: ISO 9001

Condition: New

Precision Ball Screen: Taiwan Hiwin

Supply Ability & Additional Information

Packaging: Seaworthy packing

Productivity: 20Sets/Month

Transportation: Ocean

Place of Origin: Shandong, China

Supply Ability: 200Sets/Year

Certificate: ISO

Payment Type: L/C,T/T

Incoterm: FOB,CFR,CIF,EXW

Packaging & Delivery

Selling Units:: Set/Sets

Package Type:: Seaworthy packing

Main function and features:

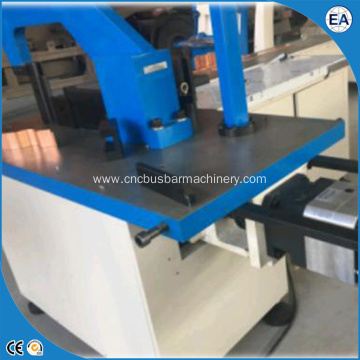

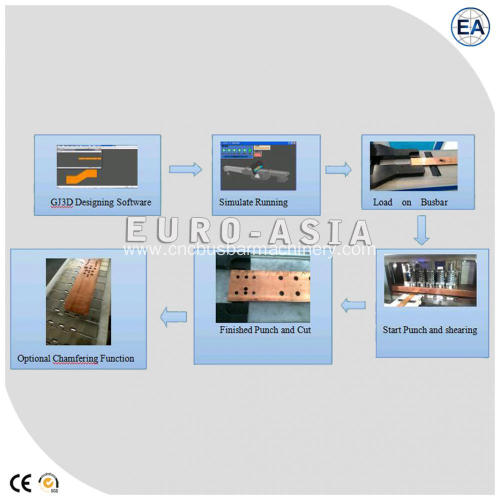

CNC-BP series CNC Busbar Punching Machine is the computer-controlled equipment of high efficiency and high precision, The busbar punching machine specially used for busbar processing; Dies of punching, shearing are placed together in the storeroom of dies; The CNC Busbar punching machine is capable of executing punching(round, oblong and other holes), shearing, slotting, round cornering and other processes; Automatic clamp switching can be achieved without manual intervention for longer busbars. Finished work pieces will be sent out through the conveyor. Such machine series can be used in combination with the CNC Busbar Bending Machine to form an assembly line of busbar processing.

Main techincal parameters

Technical parameter
Description		Unit	Parameter
Press Force	Punching Unit	kN	500
	Shearing Unit	kN	500
	Embossing Unit	kN	500
X Max Speed		m/min	60
X Max Stroke		mm	2000
Y Max Stroke		mm	530
Z Max Stroke		mm	350
Stroke of Hit Cylinder		mm	45
Max hit speed		HPM	□120 □150
Tool	Punching Mould	set	□6 □8
	Shearing Mould	set	□1 □2
	Embossing Mould	set	□1
Control Axis			□3 □5
Hole Pitch Accuracy		mm/m	±0.20
Max hole punch size		mm	Φ32( Thickness of Copper bar <12mm)
Max embossing area		mm²	160×60
Max Allowable sheet dimension(LWH)		mm	6000×200×15
Total power		kw	14
main machine dimension:L*W		mm	7500X2980
Total weight		kg	7600

Packing details:

With customer together

Complitment from Customer__
